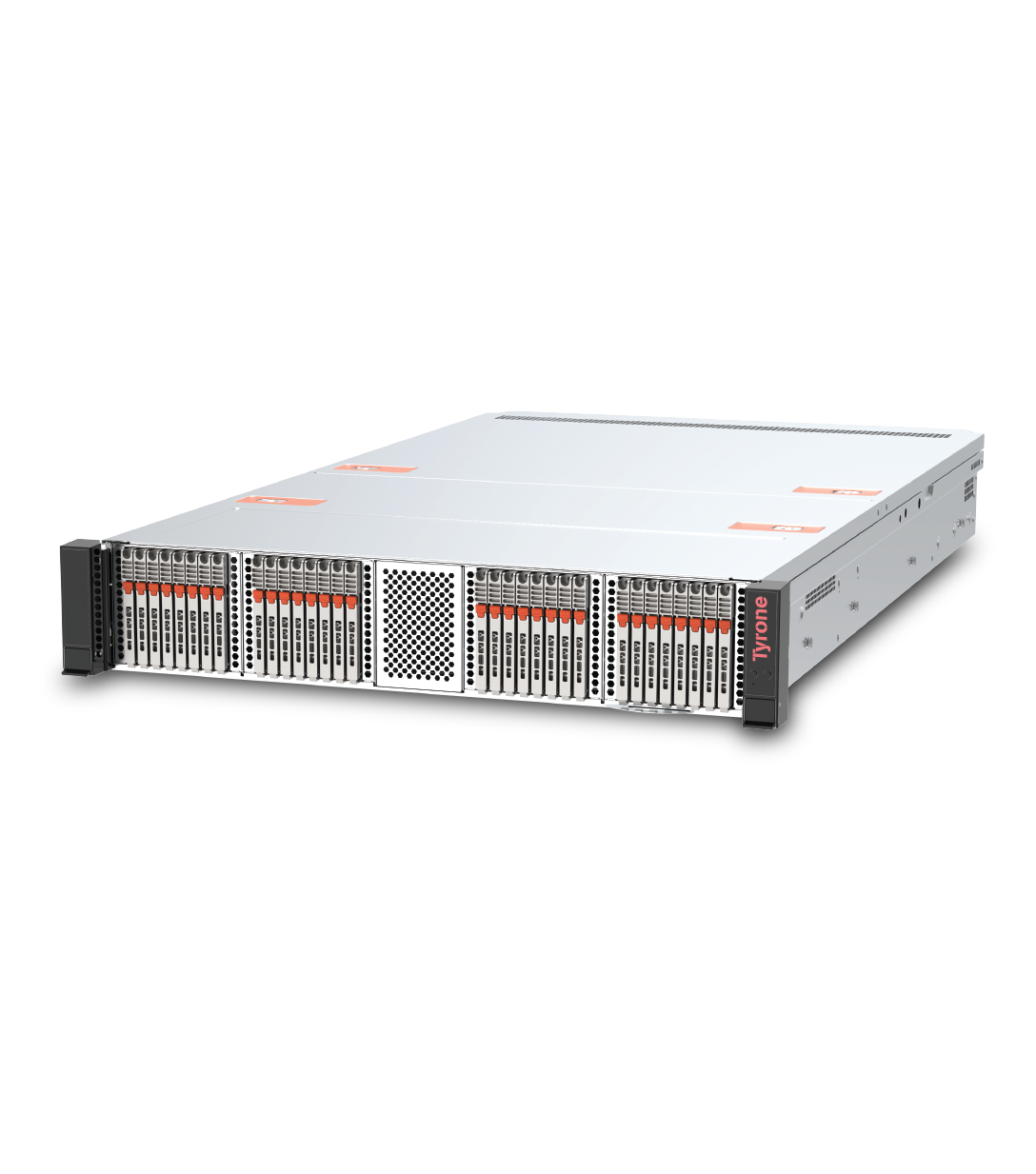

Camarero PSA200E3N-232 Contact Us @
Product Overview Configurator
Bookmark and Share
Scalable 2U storage platform combining AMD EPYC™ 9005 processing with high-density PCIe 5.0 NVMe storage and next-generation DDR5 memory.
• Single Socket AMD EPYC™ 9005 processor
• 12x DDR5 RDIMM Expandable Memory
• 2 x PCIe Expansion Slots
• PCIe 5.0 Expansion slots
• Integrated ASPEED BMC Controller
• Supports IPMI, Redfish, remote KVM, and virtual media
• Enhanced Security with TPM 2.0
• 80+ Titanium Redundant Power Supply

Processor/Cache
Processor
Single-socket Support 1 x AMD EPYC 9005 processor Upto 400W TDP (LGA 6096)
System Memory
Memory Capacity 12 DDR5 DIMM slots, 12 Channels (1DPC)
DDR5 RDIMM 6400MT/s
Max. Capacity per DIMM: 96GB
Max System Memory : 1 TB
Expansion Slots
PCI-Express SKU1 (PSA200E3N-232-x2) :
1 x PCIe 5.0 x16 OCP 3.0 slot
2 x PCIe 5.0 x16 FHHL slot
1 x PCIe 5.0 x8 FHHL slot
SKU2 (PSA200E3N-232-x4) :
1 x PCIe 5.0 x16 OCP 3.0 Slot
1 x PCIE 5.0 x16 FHHL slot
1 x PCIe 5.0 x8 FHHL slot
Drive bays
Drive bays SKU1 (PSA200E3N-232-x2) :
32 x E3.S PCIe 5.0 x2 NVMe Storage Drive(Front)
2 x 2280/22110 PCIe 5.0 x4 NVMe M.2 ports (On Board)
SKU2 (PSA200E3N-232-x4) :
20 x E3.S PCIe 5.0 x4 NVMe Storage Drive(Front)
2 x 2280/22110 PCIe 5.0 x4 NVMe M.2 ports (On Board)
Ports
Ports 1 x IPMI RJ45 (Rear)
1 x Mini display port (Rear)
1 x USB 3.0 type A (Rear)
1 x USB 2.0 type A (Rear)
1 x Console port (Rear,Type-C for UART debug)
Indicators/LEDs
Indicators/LEDs 1 x Power Button/LED (Front/Rear)
1 x UID Button/LED (Front/Rear)
1 x BMC status LED (Front/Rear)
Security
Security TPM 2.0
Power Supply
Power Supply (1 + 1) 2000W 80+ CRPS Titanium Redundant Power Supply
Environment
Temperature System Operating Temperature: 10°C ~ 35°C
Non-operating Temperature: -40°C ~ 68°C
Humidity Operating relative humidity: 10% to 80% (non-condensing)
Non-operating relative humidity: up to 90% (non-condensing)
Form Factor
Form Factor 2U Rackmount
Dimensions 448mm (W) x 87mm (H) x 770mm (D)

Specifications subject to change without notice. Picture used for representation purpose only and the actual product may differ in looks All other brands and names are the property of their respective owners
