Density Optimized System
Solution Providing Leadership
Performance for HPC & AI
bg

Introducing the Intel® Server System S9200WK product family

The S9200WK product family is the highest performance member of Intel® Data Center Blocks. These fully validated, unbranded server systems include Intel’s latest data center technology― already optimized to work better together―allowing partners to accelerate time to market with reliable data center solutions. Expand your revenue opportunities in the HPC and AI infrastructure space with validated, pre-integrated data center block designs that deliver breakthrough density and performance for your customers.

Performance Optimized For Compute Density

High Performance Computing (HPC) and Artificial Intelligence (AI) Intel® Server System S9200WK Product Family Featuring Intel® Xeon® Platinum 9200 Processors

The Intel® Server System S9200WK product family is a purpose built, performance optimized data center block ideal for use in High Performance Computing and Artificial Intelligence applications.
Designed for Intel® Xeon® Platinum 9200 series processors, with up to 24 DDR4 DIMM slots per compute module, the S9200WK family maximizes processor and memory bandwidth to provide leadership performance for the most demanding compute use requirements.

bg
Intel® Xeon® Platinum 9200 Processors Advanced Performance
  • Leadership CPU performance per socket with Intel’s highest core count, Intel® Xeon® Platinum 920 processors

  • Double the memory bandwidth for memory-intensive workloads with 12 memory channels per CPU, 24 memory channels per compute module

  • New Intel® Deep Learning Boost Instructions for data analytics greatly accelerates inference performance

  • Multi-Chip packaging optimized for density and performance

Built with Intel Quality, Reliability and Performance


Intel® Server Products are backed by Intel’s design excellence and manufacturing expertise to deliver processing power with high levels of flexibility, manageability and reliability.


Product and design quality is paired with 3-year standard warranties and robust technical and incident resolution support to ensure customer satisfaction.


Built with Intel Quality, Reliability and Performance


The Intel® Server System S9200WK Data Center Block can be configured to support a wide range of memory, storage, and I/O options.


The Intel® Server Chassis FC2000 family allows flexible configuration of different functionality compute modules in a single chassis further extending the benefits of Intel® Server System S9200WK Data Center Blocks.


This allows a single data center block to address both compute and service node functionality simultaneously, reducing cost and increasing functionality.

Built with Intel Quality, Reliability and Performance


The S9200WK product family is the highest performance member of Intel® Data Center Blocks. These fully validated, unbranded server systems include Intel’s latest data center technology― already optimized to work better together―allowing partners to accelerate time to market with reliable data center solutions. The process of configuring and validating the hardware components of solutions for specific customer requirements is a complex and resource intensive process.


Intel Data Center Blocks based on the S9200WK product family reduce this complexity, making it easier to build innovative server solutions that can support the demands of today’s data center workloads.

Intel® Server System S9200WK Data Center Block Technical Specifications

bg
bg

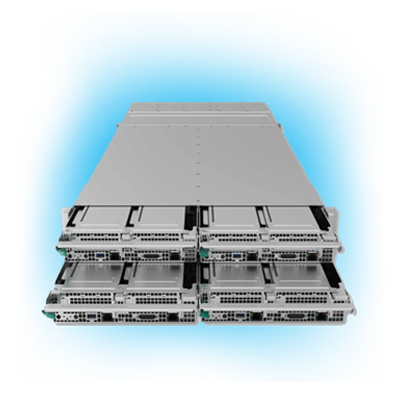

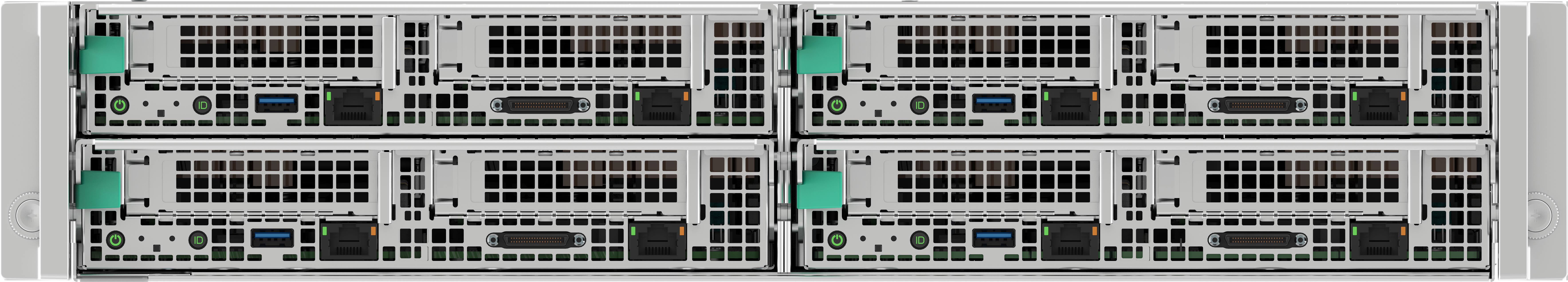

Form Factor 2U rack enclosure; Up to 4 independent warm-swap compute modules
CPU Intel® Xeon® Platinum 9200 Processors
Memory DDR4 2933 MT/s DIMMS, up to 96x DIMMs per DCB (24 DIMMs per compute module) @ 1DPC ;Supports 8GB to
128GB DIMM options, number and capacity configurable
Storage Up to 8x M.2 SSDs per DCB with 1U compute modules; Up to 4x M.2 SSDs & 4x hot-swap U.2 NVMe SSDs with 2U Compute Modules M.2 and U.2 number and capacity configurable

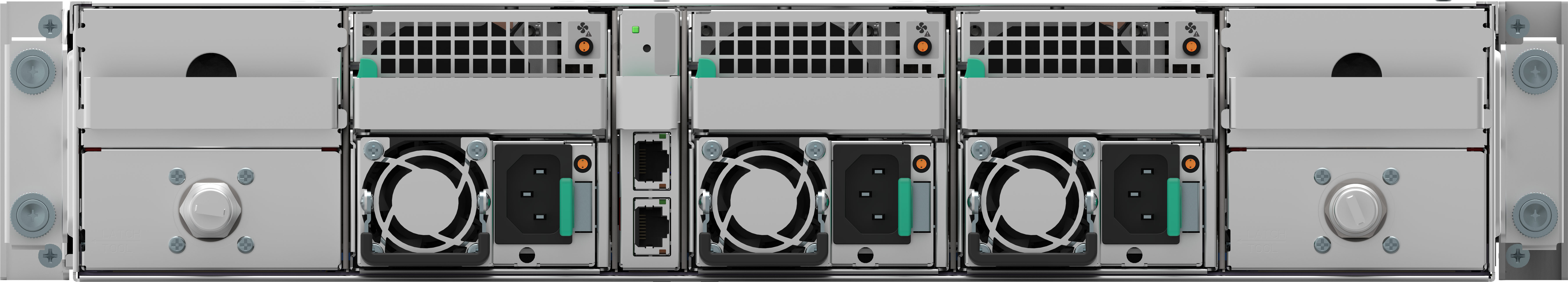

Power Supply 3x hot-swap CRPS 2100W (Platinum) or 1600W (Titanium) PSUs
Ethernet Integrated 1Gbase-T RJ45 (two ports per compute module), Optional shared 1Gbase-T RJ45 management port chassis card
Cooling Available with high flow rate air-cooling or integrated liquid-cooling options
I/O 2 x16 Gen3 PCIe* slots per 1U compute module; 4 x16 Gen3 PCIe slots per 2U compute module for high-speed networking support
Manageability Dedicated, consolidated Management Module
Security & Serviceability TPM 2.0 (optional); Hot-swap/redundant fans, and PSUs; light path diagnostic LEDs

Intel® Server System S9200WK Compute Modules (Data Center Block Component)

bg bg bg

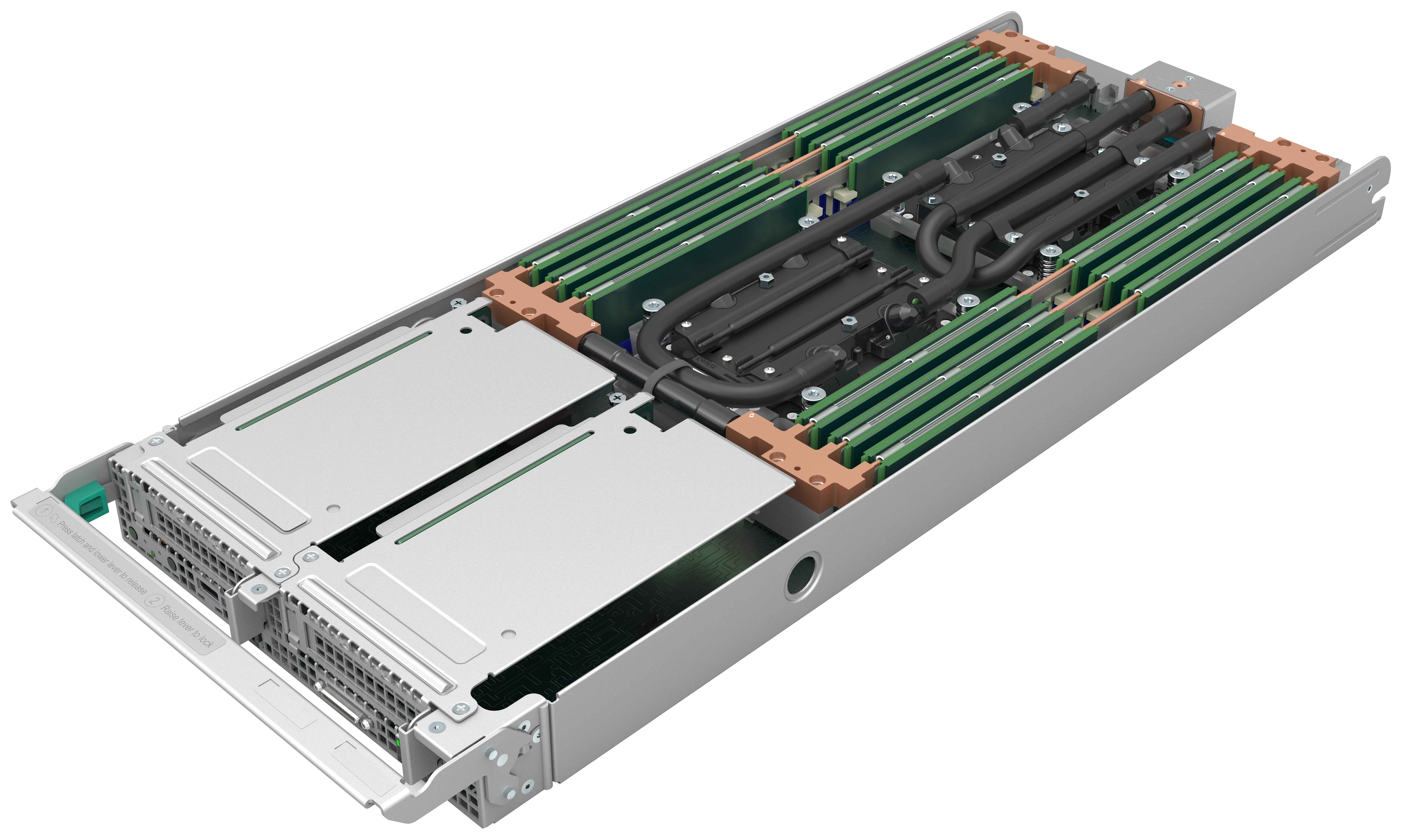

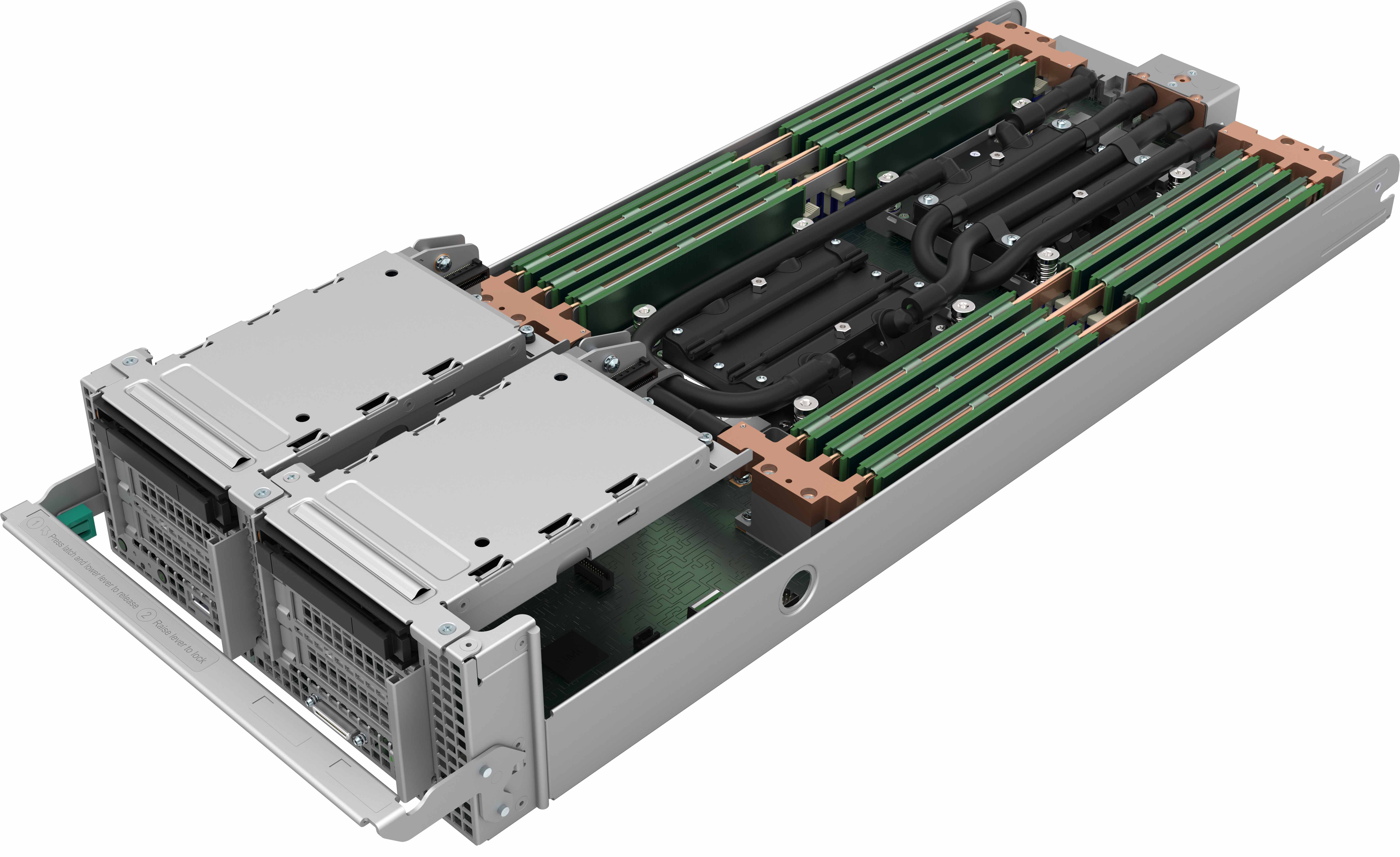

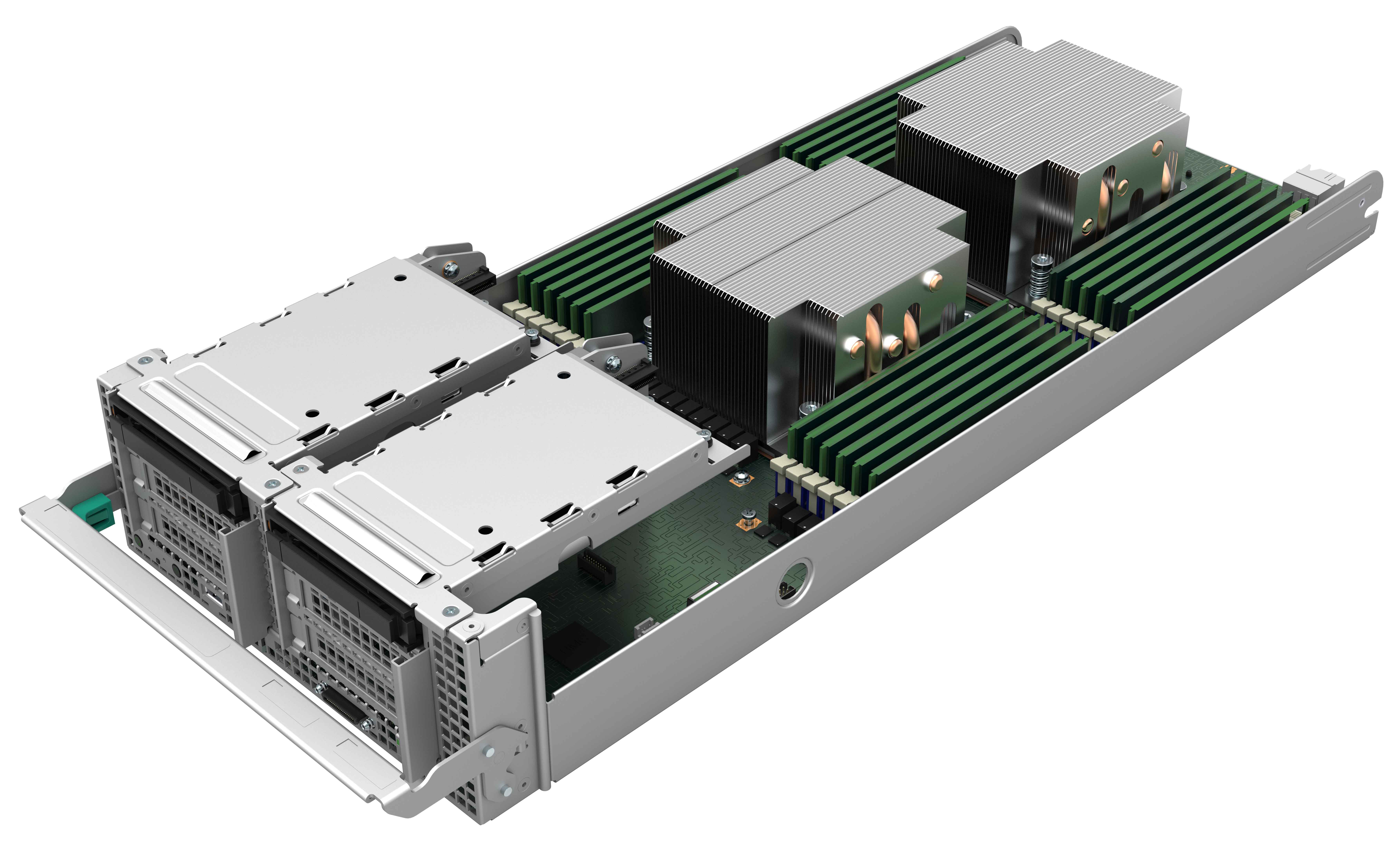

Component 1U Half-Width Liquid-Cooled Compute Module  2U Half-Width Air-Cooled Compute Module 2U Half-Width Liquid-Cooled Compute Module
CPU  Intel® Xeon® Platinum 9200 processors with up to 48 cores 350W TDP
Memory DDR4 2933 MT/s DIMMS, up to 24 DIMMs per compute module @ 1DPC; Supports 8GB to
128GB DIMM options, number and capacity configurable
Storage  2x M.2 SATA/NVMe SSDs 80 or 110mm 2x M.2 SATA/NVMe SSDs 80 or 110mm & 2x U.2 NVMe hot-swap SSDs, optional RAID 0 & 1 support available on U.2 SSDs
DCB Configuration 2U/4N liquid-cooled 2U/2N air-cooled 2U/2N liquid-cooled
I/O 2x Integrated 1Gbase-T RJ45 & 2 x16 Gen3 PCIe slots 2x Integrated 1Gbase-T RJ45 & 4 x16 Gen3 PCIe slots
Debug Support Dedicated port for VGA, serial, & 2 USB 2.0 port connectivity
 Cooling Direct-to-Chip Liquid-Cooling for CPUs, VRs, DIMMs, and Memory VRs High-Flow Air-Cooling Direct-to-Chip Liquid-Cooling for CPUs, VRs, DIMMs, and Memory VRs

Intel® Xeon® Platinum 9200 Processors (Data Center Block Component)

Cores Base Frequency Max Turbo Frequency L3 Cache # of UPI Links Power
9242 48 2.3 GHz 3.8 GHz 71.5 MB 4 350W
9222Ɨ 32 2.3 GHz 3.7 GHz 71.5 MB 4 250W
9221Ɨ 32 2.3 GHz 3.8 GHz 71.5 MB 4 250W

Intel® Server Chassis FC2000 (Intel® Data Center Block Component)

bg bg

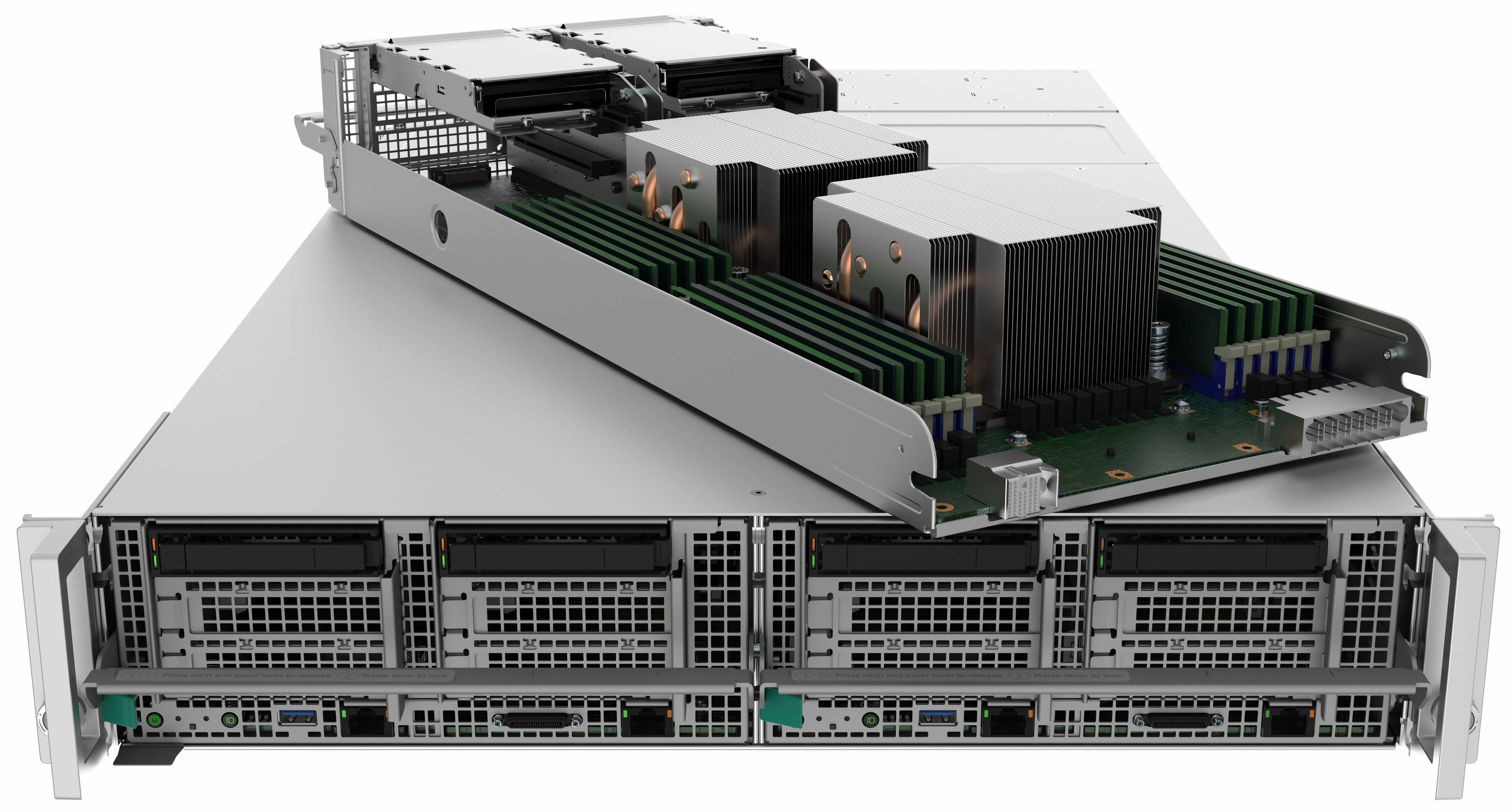

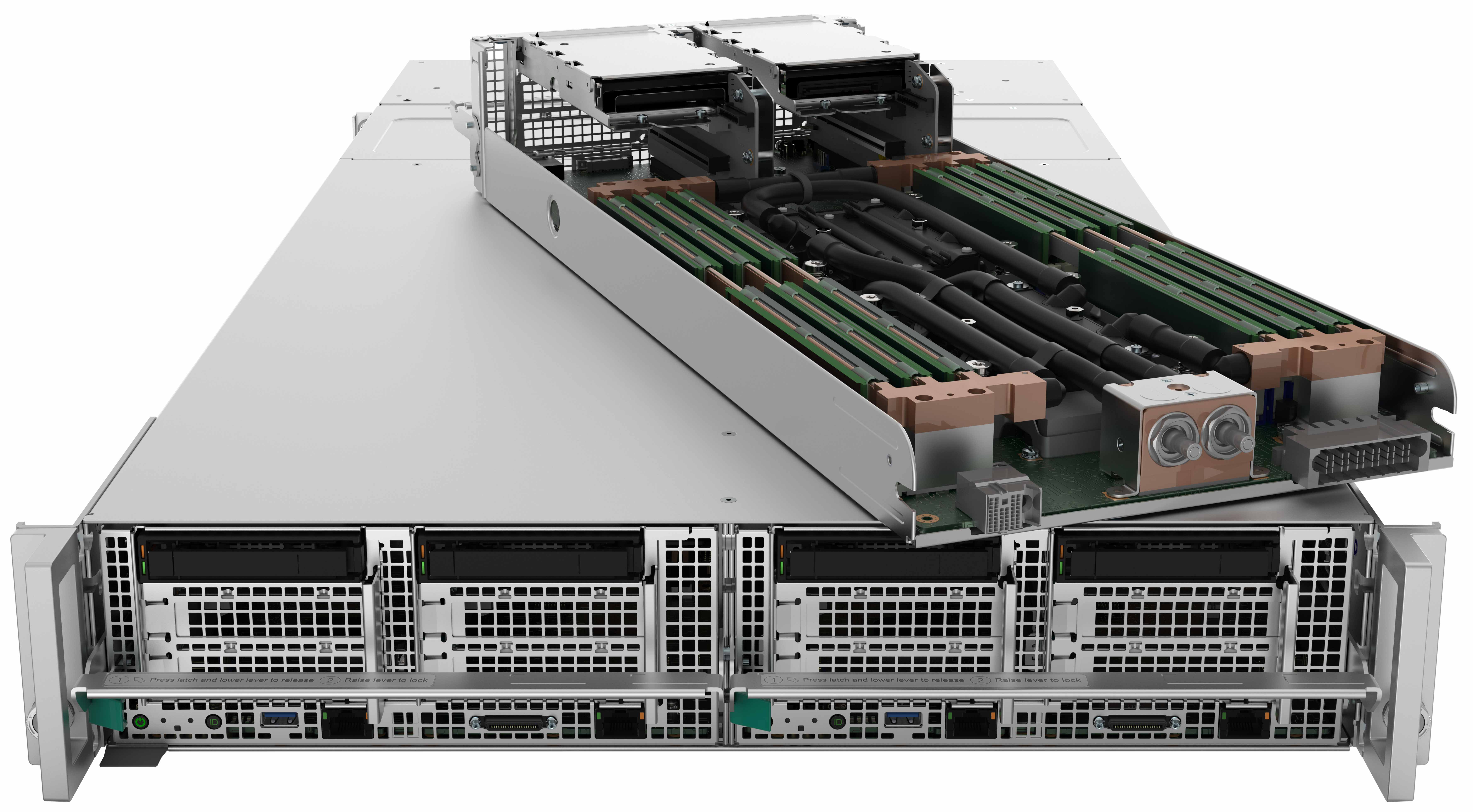

Component 2U Front I/O standard-width air-cooled chassis with included rail-kit 2U Front I/O standard-width liquid-cooled chassis with included rail-kit
Supported Configurations 4x 1U Half-Width Compute Modules; 2x 2U Half-Width Compute Modules; 2x 1U Half-Width Compute Modules & 1x 2U Half- Width Compute Modules
Cooling 3x 60mm fans & 2x 80mm fans 3x 60mm fans & integrated liquid-cooling manifold (SCG06 external connectors, CGD03 internal connectors)
Power Supplies 3x hot-swap CRPS 1600W (Titanium) or 2100W (Platinum) PSUs 3x hot-swap CRPS 2100W (Platinum) PSUs
Options Optional shared 1GBase-T RJ45 management port chassis card

Intel® Server System S9200WK enables you to resolve customer challenges and quickly expand into the rapidly-growing HPC and AI infrastructure market.
